Features
- Plug and Play OEM Integration: Designed with factory-style connectors that plug directly into the vehicle’s headlight harness, allowing power to be drawn without cutting, splicing, or modifying factory wiring while preserving OEM electrical integrity.
- Quick Connect Installation: Engineered to significantly reduce installation time by eliminating the need for fuse taps, separate power leads, or manual wire identification, resulting in a fast and frustration-free install.
- Heavy-Duty Copper Wiring: Constructed using 16-gauge, 100 percent copper wire to ensure reliable power delivery, consistent LED performance, and long-term durability.
- Weatherproof Electrical Connections: Features sealed, weather-resistant connectors that protect against moisture, dirt, and corrosion, making it suitable for daily driving and harsh environments.
- OEM Safe and Fully Reversible: Allows LED emblems to be powered without permanently altering the vehicle’s electrical system and can be removed to return the vehicle to factory condition.
- Headlight Activated Operation: Powers the Luminix LED emblem through the headlight circuit so the emblem illuminates in sync with factory lighting for a cohesive, factory-integrated appearance.
- Vehicle Specific Compatibility: Designed for select Ford trucks equipped with compatible headlight configurations, including F-150, Super Duty, and Ranger models, with fitment varying by year and headlight type.
- Warranty: Backed by Putco’s 3-year warranty.
- Designed in the USA: Designed by Putco Inc., Des Moines, IA.
Check out the new Quick Connect™ Harnesses for Luminix Ford LED Emblems, engineered to deliver a clean, OEM-style installation without the uncertainty or risk associated with traditional wiring methods. These harnesses are the ideal solution for customers who prefer to avoid the guesswork of locating fuse points, tapping into factory wiring, or hardwiring components, while ensuring the vehicle’s original electrical system remains 100% intact and unaltered.

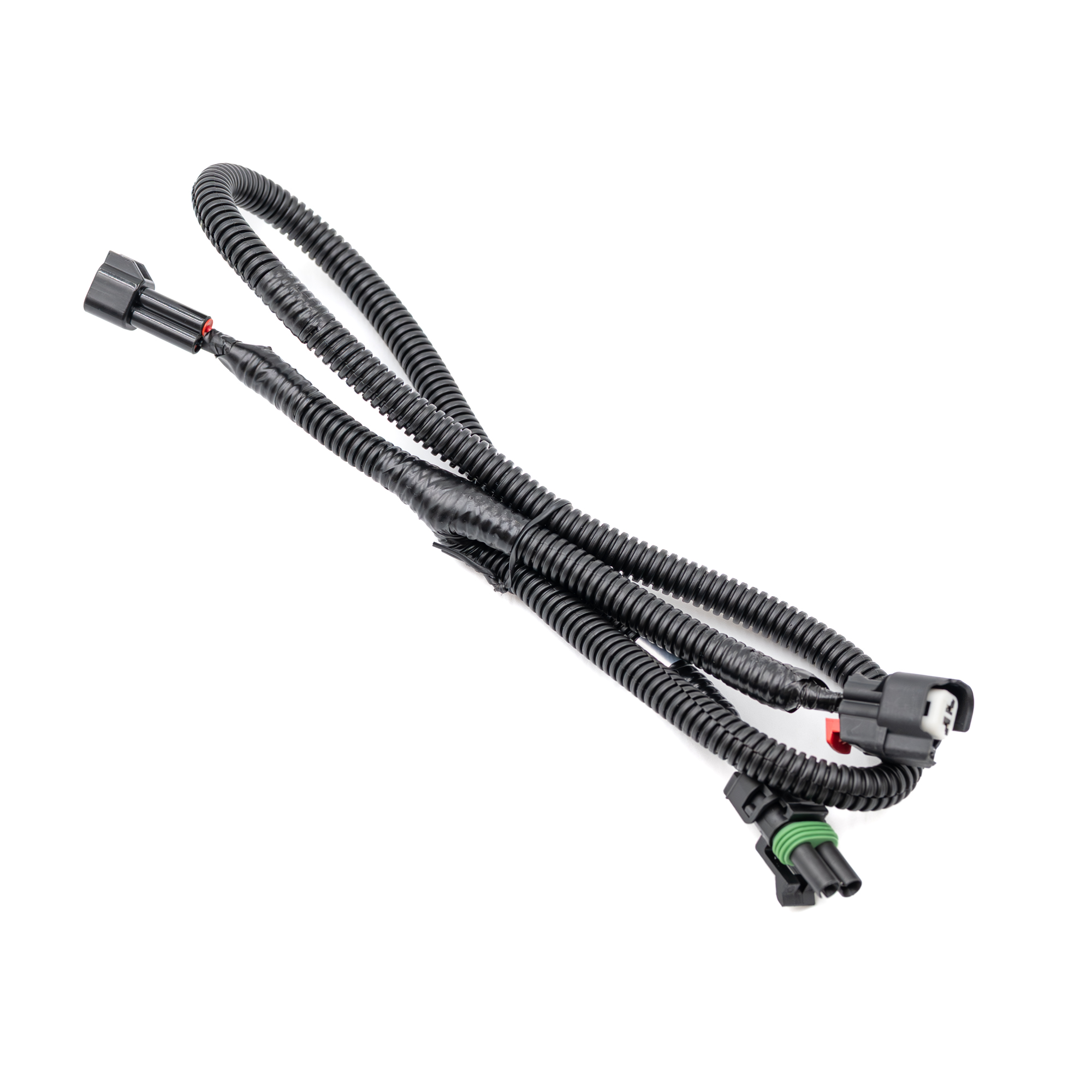

Designed with a vehicle-specific, Y-style wiring configuration, the Quick Connect Harness plugs directly into the factory headlight connector and provides a dedicated, secure connection for the Luminix LED Emblem. This OEM-style design allows the emblem to operate seamlessly with the vehicle’s lighting system while maintaining a factory-integrated appearance. With just three simple clicks, the wiring installation is complete, significantly reducing installation time and eliminating the need for cutting, splicing, or permanent modifications.
These Quick Connect Harnesses are currently available for 2021 and newer Ford F-150 and Super Duty grille emblems. Each harness is proudly designed and engineered by Putco Inc. in Des Moines, Iowa, using high-quality materials to ensure reliable performance, long-term durability, and consistent power delivery. Every harness is backed by Putco’s three-year Luminix warranty, providing added confidence in both quality and craftsmanship.
California Residents: Proposition 65 Warning
Get the Quick Connect Harness for your truck by selecting the Headlight electrical system that you have!
The harness was a direct fit with the exception of the pigtail pinout having reverse polarity. After switching the polarity of pinout, found green ground on back of emblem also had to be severed as it left a direct short to ground. No documentation included on these issues included with harness. Only learned of these things through calling tech support. (Not exactly plug n’ play).
Great product for a plug and play connection. It made easy and effort free work of connecting the front emblem to the power source for the lights.
This plug and play harness was easy to install.
The only hard part about it was removing the headlight.
