Putco Inc. has over 55 years of expertise in manufacturing automotive accessories and lighting assemblies. Leveraging our expertise in OEM-grade LED manufacturing and vehicle integration, Putco has introduced new designs to the safety lighting market that are winning over professional installers, fleet managers, and work truck owners across the United States and Canada.
This article is part of our ongoing series to directly compare our products to other established brands available on the market. This article focuses on ECCO, an established safety lighting manufacturer. We will focus particularly on their 5590 REFLEX minibar, as per their website, which is their most premium option.
Using only information from ECCO’s official website and published marketing materials, we will take a close look and compare the Putco YellowJacket (our high-end model) and the Putco Hornet (our standard warning light bar) to the ECCO 5590 REFLEX mini light bar.
Putco YellowJacket VS Putco Hornet VS ECCO Reflex 5590
| Putco YellowJacket | Putco Hornet | ECCO 5590 REFLEX | |
| Price | $389.99 | ✅ $181.99 | $350-$400 |
| Size Options | 12″ | 16″, 24″, 36″, 48″ | 15″ |
| Dimensions | 12″ x 4″ x 1.3″ | (VARIOUS x 4″ x 1.5″) | 15″ x 9″ x 2.4″ |
| Lumen Output | ✅ 7,000 LM Amber, 9,500 LM White | Not Advertised | Not Advertised |
| Optics | ✅ Compound Projection Lens | Total Internal Reflection (TIR) | Total Internal Reflection (TIR) |
| Body Material | ✅ Aluminum | Polycarbonate | Polycarbonate |
| Ingress Protection (IP Rating) | IP69K (Highest Possible) | IP69K (Highest Possible) | IP69K (Highest Possible) |
| Flash Patterns | 33 Flash Patterns | 30 Flash Patterns | ✅ 91 Flash Patterns |
| Functions | Flash, Synch | ✅ Flash, White Override, Synch | Flash, Synch |
| Lens | Polycarbonate | Polycarbonate | Polycarbonate |
| SAE Standards | Class 1 – J595, J845, Title 13 | Class 1 – J595, J845, Title 13 | Class 1 – SAE J845, Title 13 |
| Color Options | Amber, White, Combo | Amber, White, Green, Blue | ✅ Amber, White, Green, Red, Blue |
| Voltage | ✅ 12-56 VDC | 12-36 VDC | 12-24 VDC |
| Operating Current (12 Volts) | 4.3 Amps | 4 Amps | 6 Amps |
| Operating Temperature | ✅ -40 to +185 Degrees F | -30 to +149 Degrees F | -40 to +122 Degrees F |
| Mounts | ✅ Model Specific Third Brake Light, Permanent Mount, Headache Rack, Magnet | ✅ Model Specific Third Brake Light, Permanent Mount, Headache Rack, Magnet | 4 Bolt, Vacuum Mount, Magnet, Tape |
| Warranty | ✅ 10 Years | 5 Years | 5 Years |
Verdict
All three of these products are professional-grade lighting solutions built to meet demanding specifications. Each has its place depending on the application.
If your priority is certified quality and dependable performance at a cost-effective price, the Hornet is an excellent choice.
ECCO competes more directly with the Hornet and offers some additional features, such as extra flash patterns and the option for a further color, red. Some aspects of its design set it behind the YellowJacket in terms of performance and reliability. This is covered in more detail in the sections below.
If the need is premium construction, proven reliability, and uncompromising performance, the Putco YellowJacket stands above the rest. It has been tested and validated in each of the above categories to position as a premium product in this market.
Housing

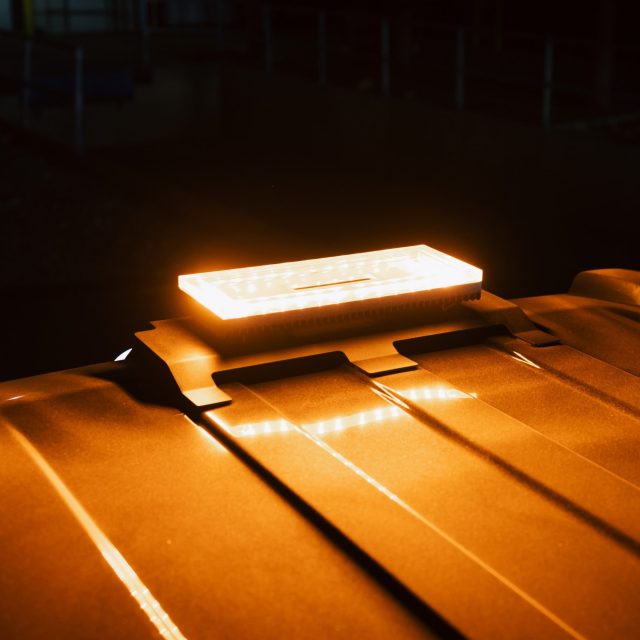

YellowJacket
The Putco YellowJacket was meticulously engineered to deliver maximum light output within an exceptionally compact housing. Every aspect of its construction was developed to achieve unmatched brightness relative to its size. Further details on these engineering innovations are outlined in the section below.
Hornet
The Putco Hornet maintains a tiny footprint by incorporating multiple individual TIR (Total Internal Reflection) modules within a durable polycarbonate housing. Each end features a uniquely engineered lens that enhances side visibility and ensures uniform light distribution across all viewing angles.

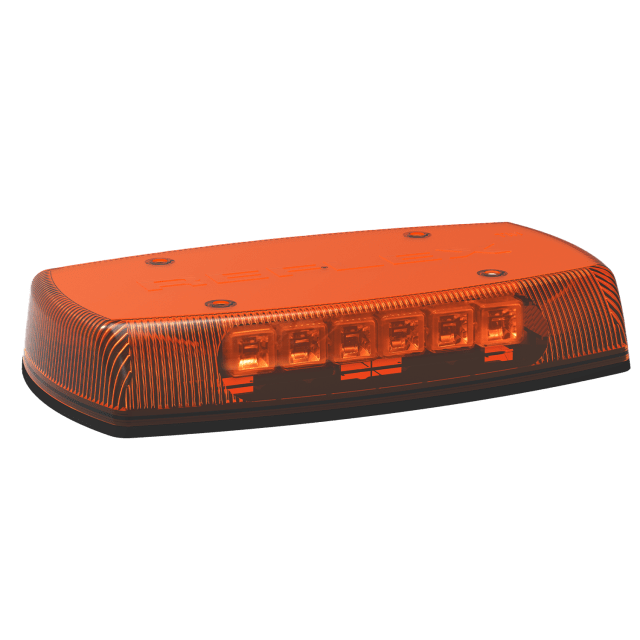

Reflex
In comparison, the ECCO Reflex adopts a larger, more traditional design. While its size supports a substantial light array, it presents a noticeably bulkier profile when set against Putco’s streamlined, modern designs.
Optics, Luminosity, and Body Material
YellowJacket
The Putco YellowJacket delivers exceptional light output in a company housing, backed by a 10-year warranty. This is done through a variety of design elements. The YellowJacket utilizes high-power LEDs driven to their maximum output to achieve 7,000 Lumen (amber) and 9,500 Lumen (white) levels. This is made possible by a combination of Putco’s proprietary circuit board technology, which maximizes electrical efficiency, and our custom aluminum base, which also acts as a heatsink.
To ensure this light is utilized effectively, Putco developed a custom compound projection lens. This is an injection-molded lens that includes curvature that shapes the light beam into a uniform +/-4 candela distribution. The YellowJacket LEDs and circuit board are placed flat within the aluminum base; then, light from the diodes is directed upward into this lens. This design provides a brilliant, even spread of light at a precise and optimal beam angle. This is crucial for a safety light bar, as it ensures the product remains highly visible at any viewing angle and distance.
Hornet
The Putco Hornet maintains a small footprint by incorporating multiple individual TIR (Total Internal Reflection) modules within a durable polycarbonate housing. Each end features a uniquely engineered lens that enhances side visibility and ensures uniform light distribution across all viewing angles.
Reflex
In comparison, the ECCO Reflex adopts a larger, more traditional construct. While its size supports a substantial light array, it presents a noticeably bulkier profile when set against Putco’s streamlined, modern designs.
Ingress Protection (IP Rating)
YellowJacket & Hornet
Putco lighting products are rigorously tested to meet the IP69K Standard, including both the YellowJacket and Hornet models. IP stands for Ingress Protection, an ISO/IEC standard that defines a product’s resistance to dust and moisture intrusion. The first digit, 6, signifies complete dust-tight protection—no dust can enter the enclosure under any conditions. The second component, 9K, indicates that the product can withstand high-pressure, high-temperature water exposure without compromising its integrity.
Reflex
The ECCO Reflex also obtains an IP69K Rating.
The chart below, sourced from the International Electrotechnical Commission (IEC), provides an overview of how each rating level is defined and what level of protection it represents.
| First Numeral – Dust | Second Numeral – Water | |
| 0 | No Protection | No Protection |
| 1 | Protection against solid foreign objects of 50 MM and greater | Protected against vertically falling water drops when the enclosure is tilted up to 15 degrees |
| 2 | Protection against solid foreign objects of 12.5 MM and greater | Protected against vertically falling water drops when the enclosure is tilted up to 15 degrees |
| 3 | Protection against solid foreign objects of 2.5 MM and greater | Protected against spraying water. |
| 4 | Protection against solid foreign objects of 1 MM and greater | Protected against water splashed from all directions |
| 5 | Dust-protected | Protected against water jets |
| 6 | Dust-tight | Protected against powerful water jets |
| 7 | Protected against the effects of temporary immersion in water | |
| 8 | Protected against the effects of continuous immersion in water | |
| 9 | Protected against high-pressure and high-temperature water jets from any direction |
Flash Patterns
YellowJacket Flash Patterns
Hornet Flash Patterns
Operating Voltage and Amperage
YellowJacket & Hornet
The Putco YellowJacket operates within a 12–56V range, while the Putco Hornet operates within a 12–36V range. This broad voltage capability enables both models to operate safely and reliably across a wider range of vehicles and equipment. In contrast, many competing light bars are restricted to 12–24V, and the
Both Putco models are also engineered for efficient power consumption, featuring notably low amperage draw relative to their lumen output, particularly in the YellowJacket. This efficiency minimizes strain on the vehicle’s electrical system, which is crucial for applications that run multiple accessories simultaneously. The reduced electrical load not only enhances system reliability but also extends component life, supporting Putco’s 10-year warranty and long-term product durability.
Reflex
ECCO Reflex specifies 12-12V operation in its marketing materials (though it may still function at higher voltage under the right circumstances). While fine for traditional automotive use, these limitations reduce compatibility in mixed or specialized fleets. By comparison, the YellowJacket and Hornet maintain consistent light output even when vehicle voltage fluctuates, ensuring dependable illumination under all operating conditions. Putco products are also compatible with a wide range of non-automotive applications, such as equipment.
Operating Temperature
Both the Putco YellowJacket and Hornet are engineered to deliver dependable performance in all weather conditions, ensuring consistent visibility and reliability regardless of the environment. Each model is designed to operate flawlessly across a broad thermal range. Like the ECCO Reflex, both are rated for operation in extreme heat and cold, meeting the rigorous expectations of professional fleet and worksite applications.
However, as with most aspects of the YellowJacket’s design, Putco went beyond standard testing protocols. Our engineering team subjected the YellowJacket to additional testing, such as thermal shock, that exceeded the benchmarks typically required for professional-grade safety lighting. These tests simulate harsh real-world conditions. Because of this, we can provide a comprehensive temperature rating for the YellowJacket, ranging from -40°F to +185°F.
Mount and Accessories
Brackets are another area where Putco clearly stands out. With over 55 years of experience in designing and manufacturing pickup truck accessories, Putco has developed thousands of vehicle-specific mounting systems. This background in precision bracketry directly influences how we approach the design and installation of our lighting products.
For both the Hornet and YellowJacket, Putco offers several mounting options, with a permanent mount included in every box. ECCO also provides a range of standard/universal mounting options. Still, Putco extends far beyond the basics with a complete lineup of low-profile, model-specific rooftop brackets for today’s most popular pickups.
ECCO does NOT offer any model-specific mounting option for the rooftop or otherwise.

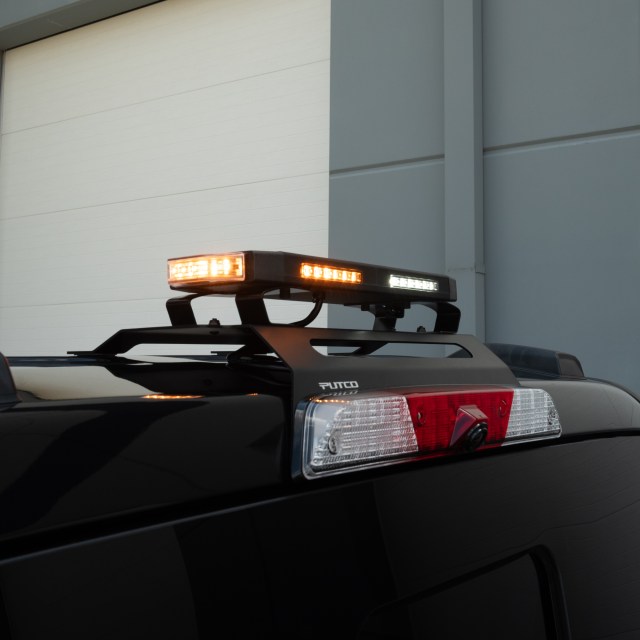

Each Putco rooftop bracket (also referred to as a third-brake light or CHMSL bracket) is a bolt-on installation directly behind the vehicle’s factory third brake light. This provides a secure, model-specific fit that does not require drilling or permanent modification to the vehicle. Putco is the market leader in custom-fit applications with wide coverage, as shown below.
Each Putco bracket also features pre-cut stabilization tabs lined with 3M Automotive Tape. These tabs adhere directly to the top of the cab, preventing vibration, rattling, or lifting while the vehicle is in motion.
See below for Putco’s full lineup of custom-fit third brake light brackets. All brackets are compatible with all YellowJacket and Hornet products, regardless of size (16″ to 48″).
Ford Hornet / YellowJacket Rooftop Brackets
| Model | Year Range | Part Number |
| F-150 | 2015-2026 | 950001 |
| Super Duty (F-350, F-450, F-550) | 2017-2026 | 950001 |
| Maverick | 2022-2026 | 950009 |
| Ranger | 2019-2026 | 950009 |
Chevrolet & GMC Hornet / YellowJacket Rooftop Brackets
| Model | Year Range | Part Number |
| Silverado / Sierra 1500 | 2014-2018 | 950002 |
| Silverado / Sierra 2500 | 2015-2019 | 950002 |
| Silverado / Sierra 1500 (Work Truck Model ONLY – Old Style) | 2019-2026 | 950002 |
| Silverado / Sierra 1500 (Work Truck Model ONLY – Old Style) | 2020-2026 | 950002 |
| Silverado/Sierra 1500 (New Body – With Spoiler) | 2019-2026 | 950003 |
| Silverado/Sierra 2500 (New Body – With Spoiler) | 2020-2026 | 950003 |
| Colorado/Canyon | 2015-2026 | 950008 |
RAM Hornet / YellowJacket Rooftop Brackets
| Model | Year Range | Part Number |
| Ram 1500 | 2009-2018 | 950004 |
| Ram 2500 | 2009-2025 | 950004 |
| Ram 1500 *CLASSIC* | 2019-2024 | 950004 |
| Ram 1500 | 2019-2026 | 950005 |
Toyota Hornet / YellowJacket Rooftop Brackets
| Model | Year Range | Part Number |
| Tacoma | 2024-2026 | 950011 |
Putco also offers additional mounting solutions designed for use with popular headache racks, including our own BOSS Aluminum Headache Rack and RealTruck’s BackRack systems. These options provide added versatility for customers who require specialized mounting configurations or prefer to integrate their warning lights into existing rack setups.
| Headache Rack | Part Number |
| Putco BOSS Rack | 950010 |
| REALTRUCK BackRack | 950007 |
Warranty
YellowJacket – 10 Year Warranty
As we’ve made clear throughout this article, the YellowJacket is designed for long-term dependability and sustained high performance. We are proud to offer a 10-Year warranty in a market where most major brands provide a standard 5-Year.
We stand firmly behind this product.
Hornet and Reflex – 5 Year Warranty
Just because the YellowJacket offers a 10-Year Warranty doesn’t mean a 5-year warranty is anything to scoff at. 5 years is a very impressive lifespan for equipment of this type, and only top-of-the-line products can meet this standard.
Putco’s customer service goes beyond just warranty redemption – we pride ourselves on maintaining a close relationship with our customers and strive to offer premium support.
